WUKO SPRINTER 0410

WUKO SPRINTER 0410

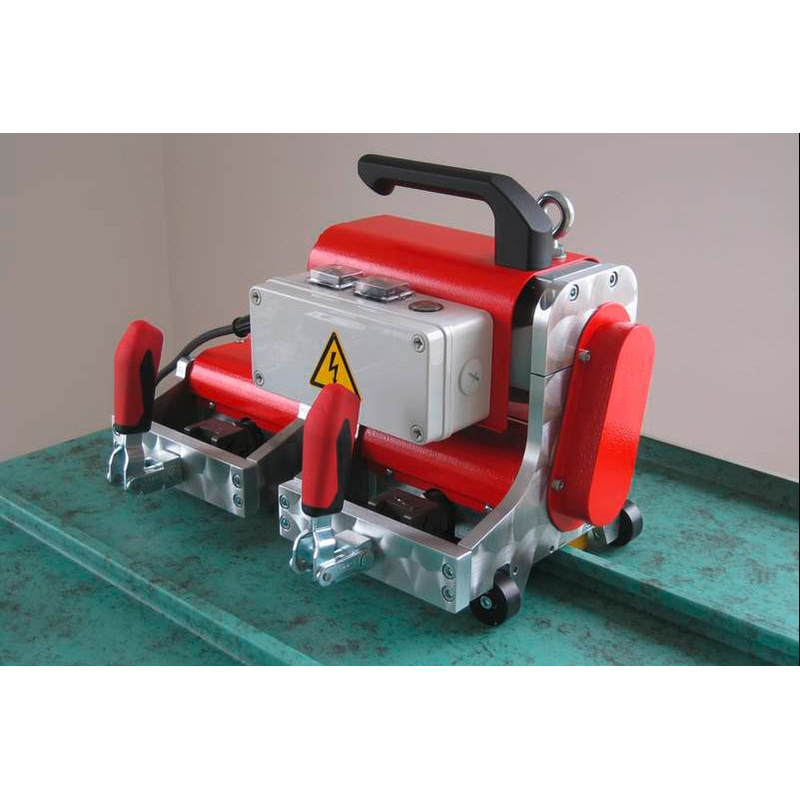

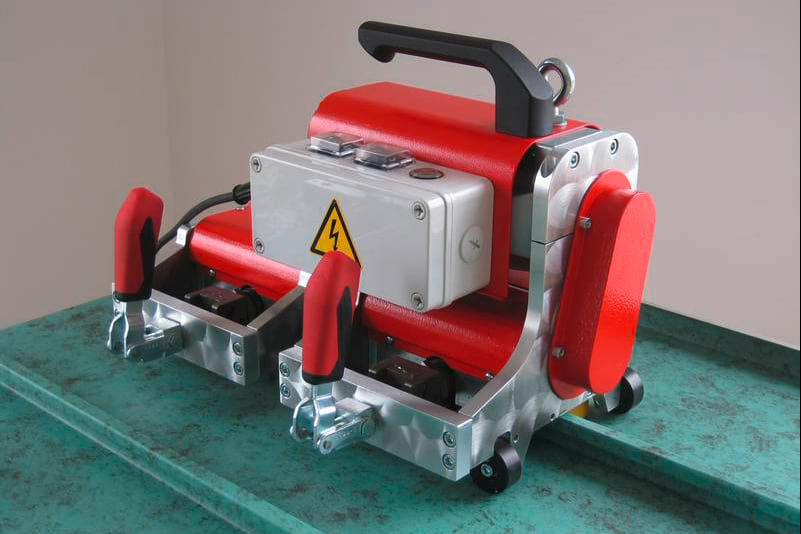

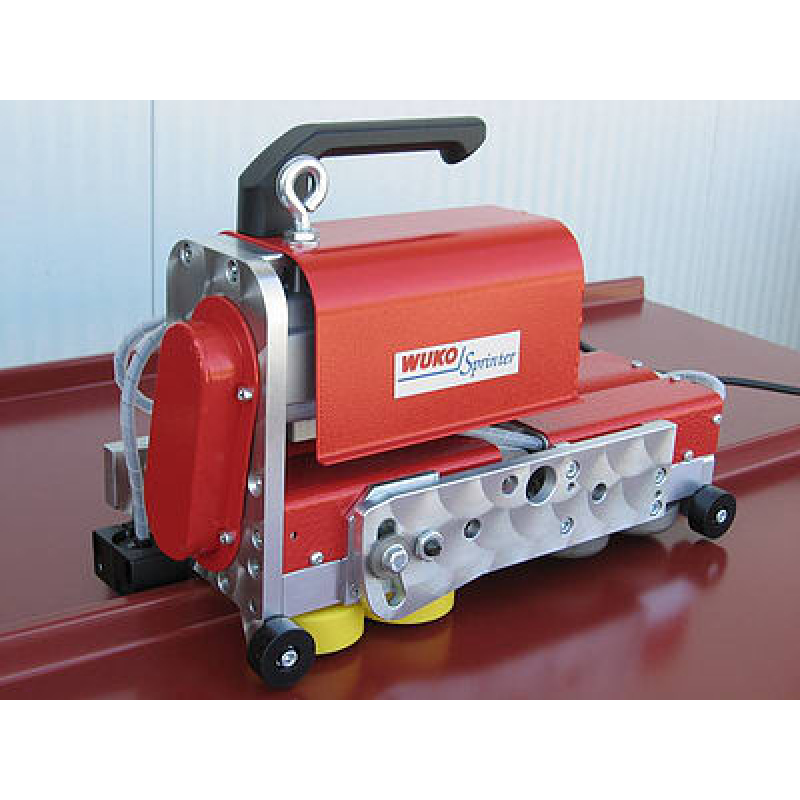

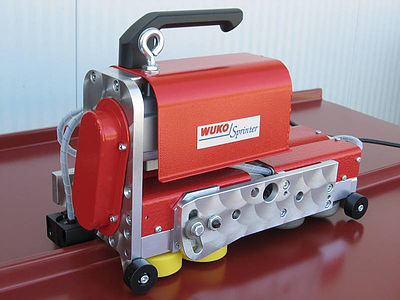

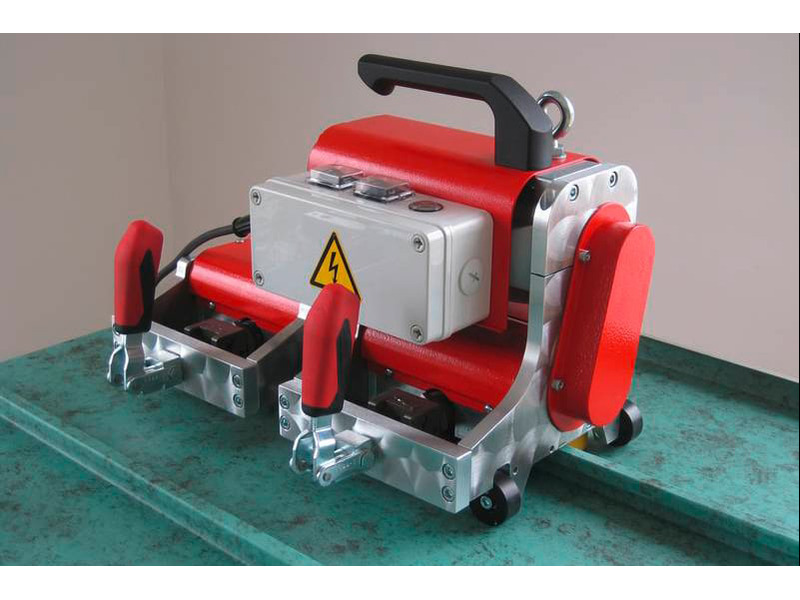

The Wuko Sprinter 0410 is a versatile lock seamer designed for efficiently closing single- or double-lock standing seams without requiring a change of forming rollers. Featuring adjustable pressure, it is suitable for use on different materials, ensuring no damage to painted or coated surfaces. Additionally, the machine can handle curved panels with minimum radii and provides an automatic motor switch-off for safety and convenience.

Uses:

• Closing single- or double-lock standing seams without roller changes
• Suitable for various materials without damaging painted or coated surfaces
• Operates on curved panels, including:
  • Convex panels with a minimum radius of 0.8 m
  • Concave panels with a minimum radius of 1.2 m

Product Details:

• Forward and backward run
• Variable pressure adjustment
• Automatic motor switch-off (sensors housed in aluminium cases) for enhanced safety
• Two working speeds: 7 m/min or 12 m/min
• Compact design includes a handy carrying case for portability

Technical Data:

• Seam height: 25 mm, 32 mm, or 38 mm
• Maximum Sheet Metal Thickness:
  • Galvanised steel: 0.65 mm
  • Aluminium, copper, zinc: 0.80 mm
  • Stainless steel: 0.50 mm
• Power Rating: 720 W
• Voltage: 230 V (115 V available on inquiry)
• Weight: 19.9 kg

Accessories:

• Set of cutting rollers for removing old standing seam panels
• Set of guide wheels for 32 mm seam height
• Set of guide wheels for 38 mm seam height
