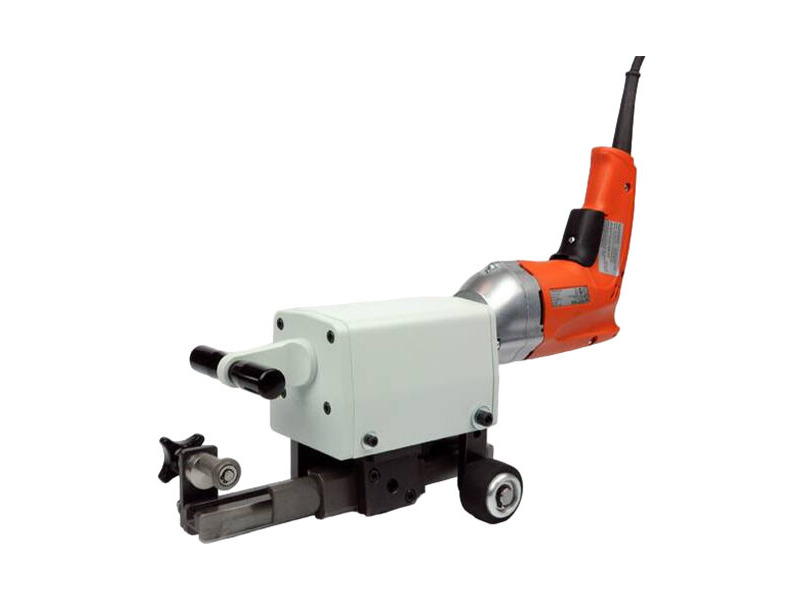

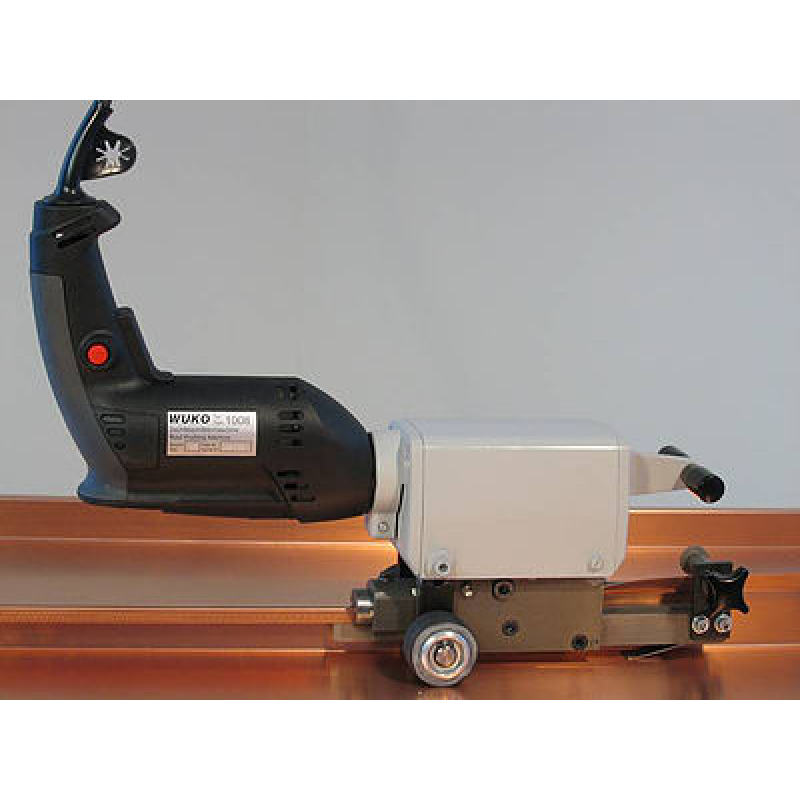

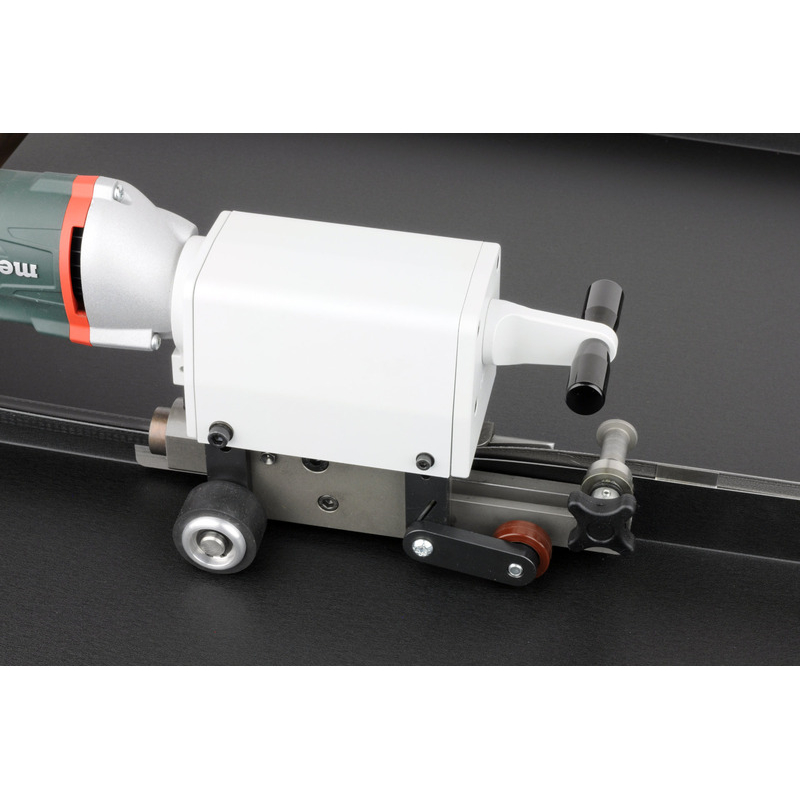

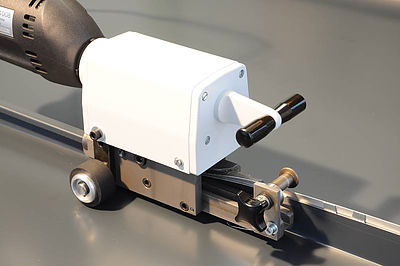

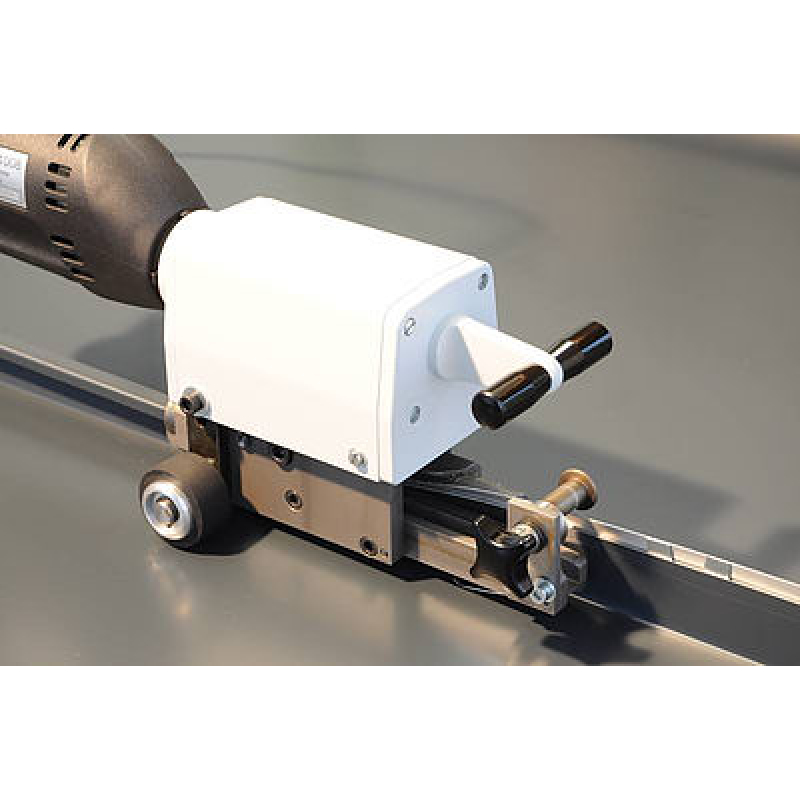

WUKO ROOF PROFILING MACHINE 1008

Description

WUKO ROOF PROFILING MACHINE 1008

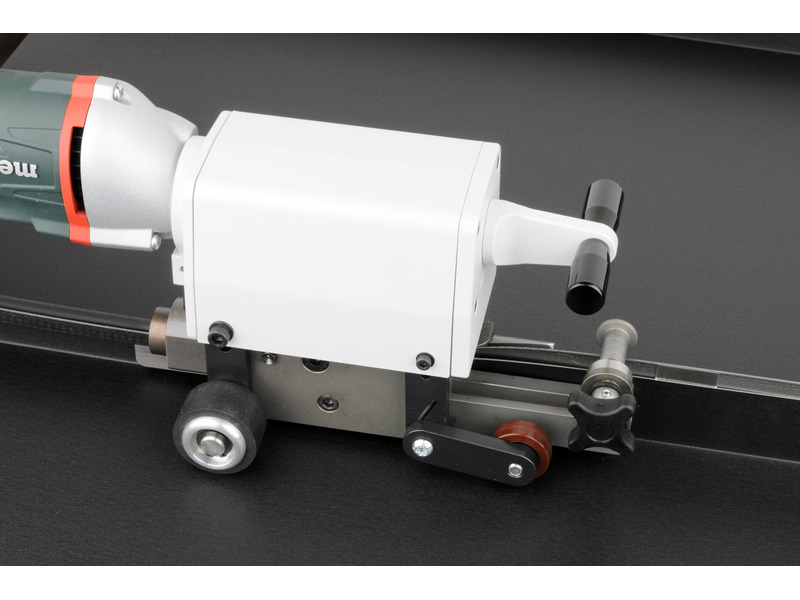

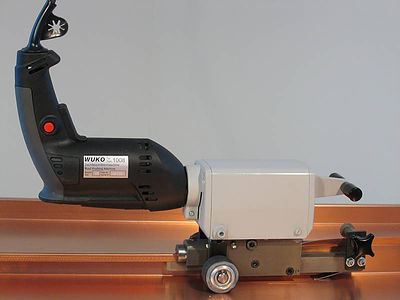

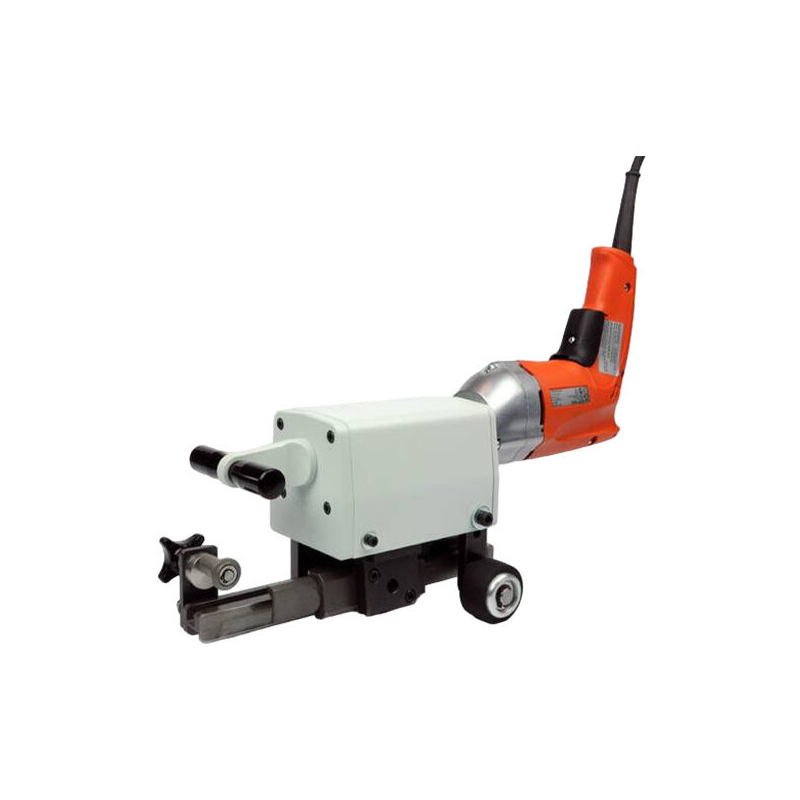

The Wuko Roof Profiling Machine 1008 is a versatile and handy power tool designed for creating profiles for single and double-lock standing seams on bent panels. With adjustable edging heights and the ability to handle various roof surfaces, it ensures precision and efficiency, making it suitable for both workshop and on-site use.

Uses:

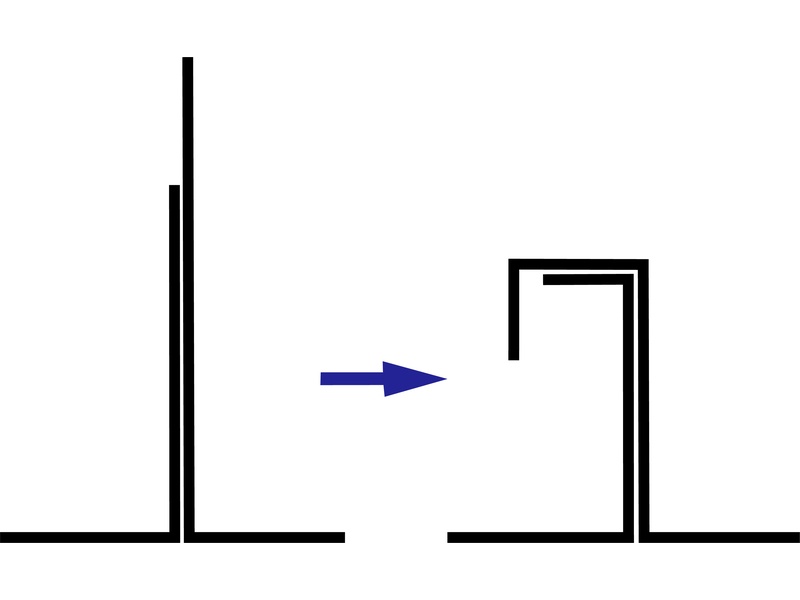

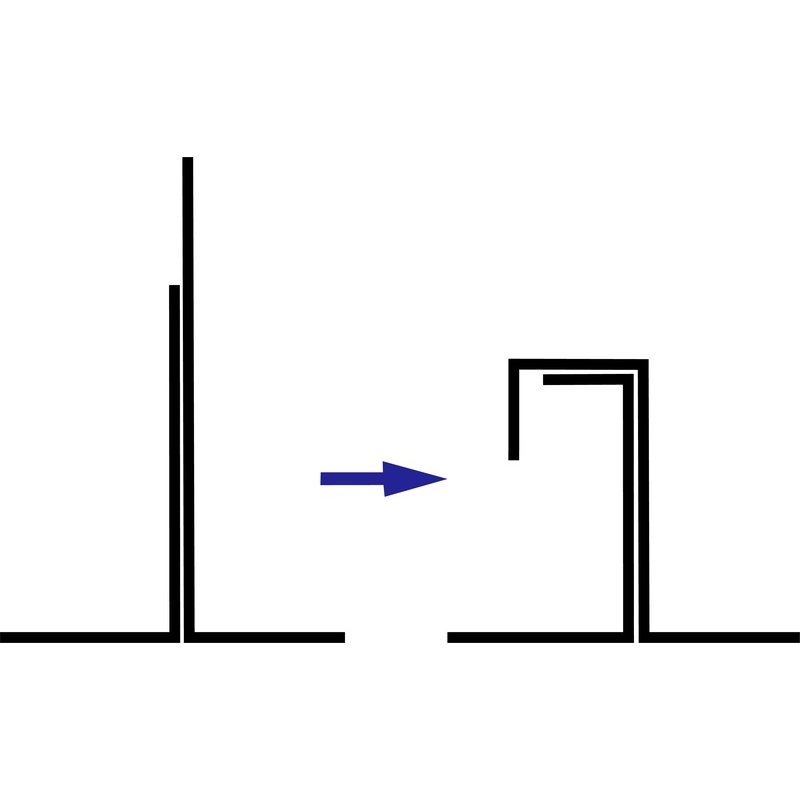

• Profiling single and double-lock standing seams on bent panels
• Adjustable for different edging heights (minimum profile height 25 mm)
• Suitable for small roof surfaces, slanting, angular, and offset elements
• Allows for profiling on narrow surfaces: minimum distance from seam centre to seam centre (bay width) about 80 mm
• A go-to tool for round roof surfaces (domed roofs) with a minimum radius of 2 m, or 0.8 m when using a round rail (sold separately)

Product Details:

• Profiles straight from the start of strips and allows for separate profiling on both sides of the panel
• Adjustable for various edging heights to suit different applications
• Compact and portable, making it ideal for use in the workshop or at job sites
• Includes NZ plug: tested and tagged to AS/NZ 3760/2010

Technical Data:

• Minimum profile height: 25 mm
• Maximum sheet metal thickness:
  • Galvanised steel: 0.75 mm
  • Aluminium, copper, zinc: 0.8 mm
• Power Rating: 500 W
• Voltage: 230 V (120 V available on request)
• Weight: 7.6 kg

Accessories:

• Special Round Rail for round surfaces for a minimum radius of 0.8 m
