REES SOLAR HOLDER STANDING SEAM
$34.00
Aluminium Brackets
In stock (can be backordered)
Description

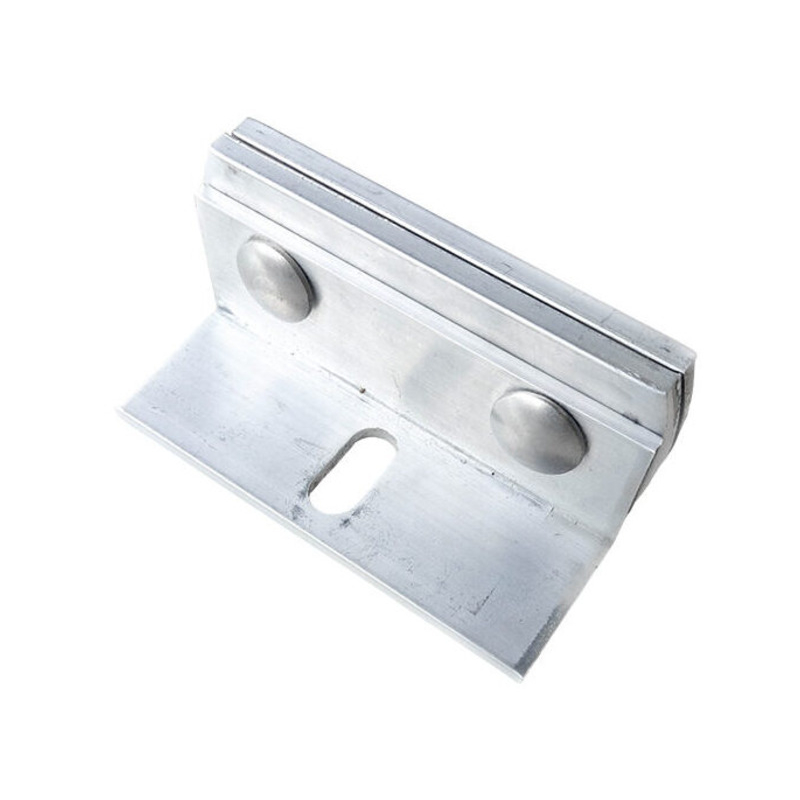

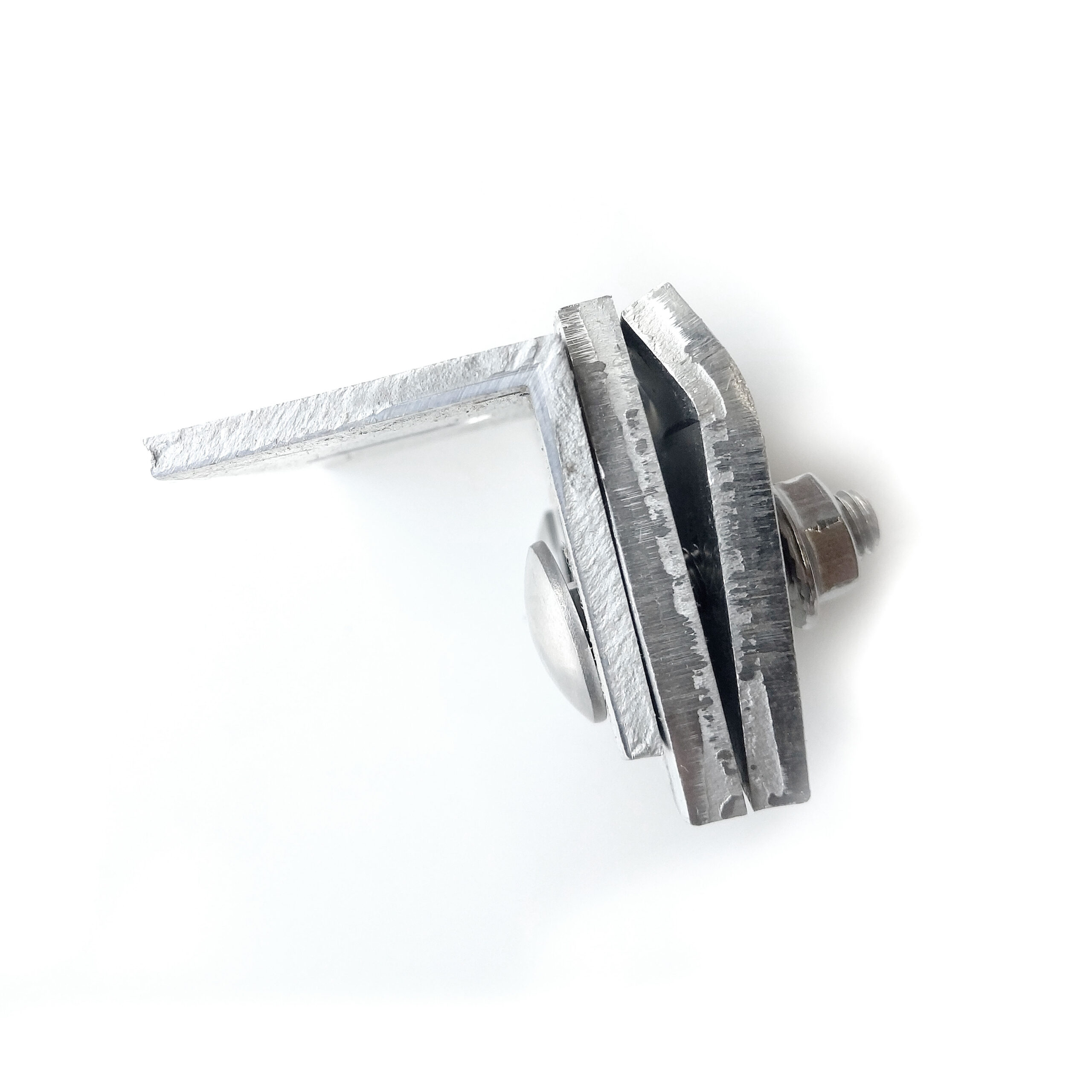

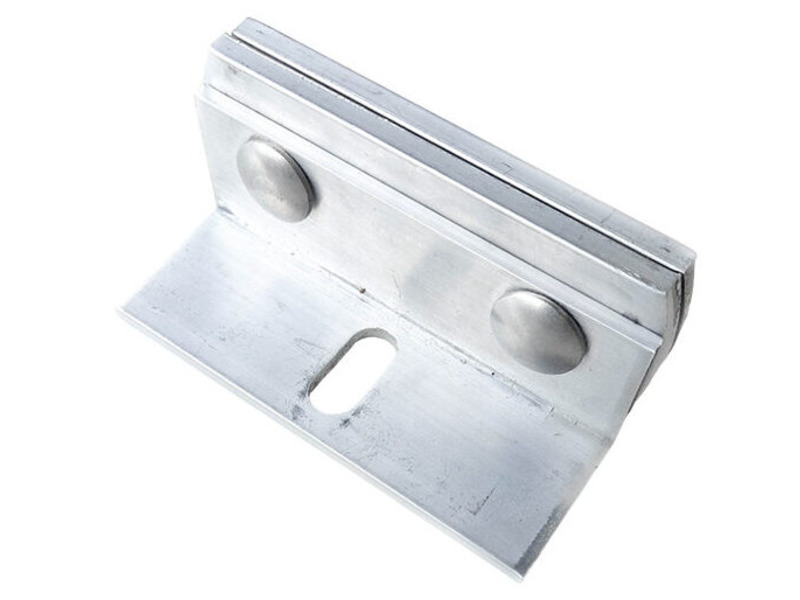

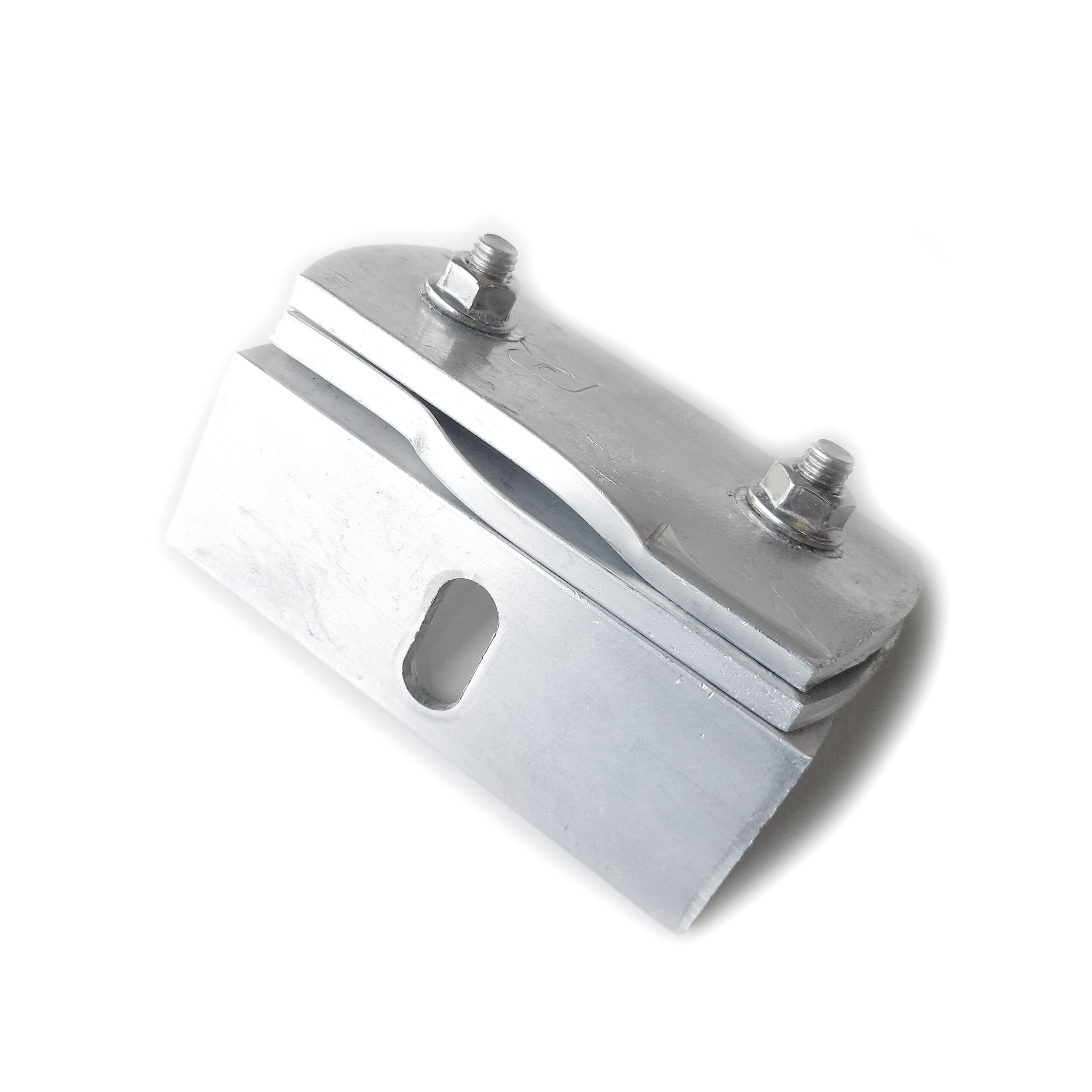

REES SOLAR HOLDER STANDING SEAM
Solar holder for standing seam roof.
- Material: Aluminium
- Weight: 1500 g
- Length: 110 mm
- AIMGSi
Profile bracket thickness app. 5 mm with the angle-part app. 40 x 40 x 4 mm with an oblong hole (on the longer item) to equalize roof irregularities. Use the oblong hole (11 x 25 mm) on the upper part to fix mounting rails. Suitable for Kalzip, Bemo and similar profiles with a “roundhead” seam. Mount the angled-part item with the included screws (A2) M8 x 35 and nuts M8 on the bracket pair. Recommended torque: at least 50 Nm.
Roof covering:
- Snaplock 25mm and 38mm
- Double standing seam
The solar holder is also available in stainless steel and copper. Please contact us for further information at info@fribesco.com
