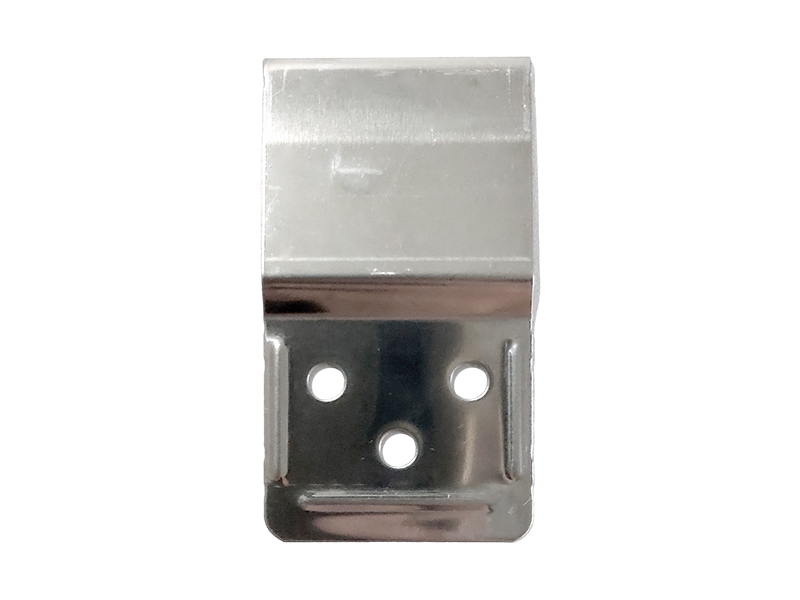

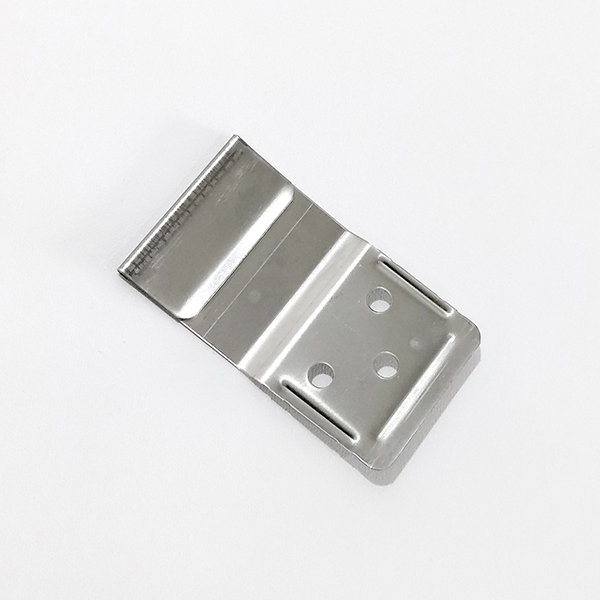

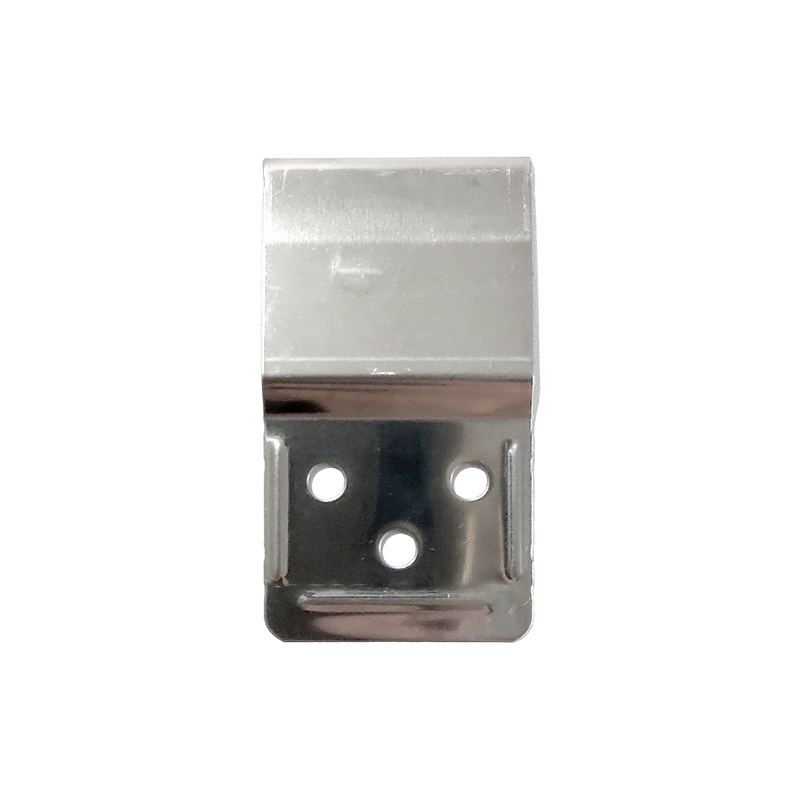

KLING STANDING SEAM FLAT-LOCK CLIPS

KLING STANDING SEAM FLAT-LOCK CLIPS

Kling Standing Seam Flat-Lock Clips are designed for roofing and cladding applications where minimal build-up in the seam is essential. Made from 0.4 mm stainless steel, these clips are durable yet thin enough to ensure a smooth, flush finish. They are installed with either stainless steel grooved nails or screws, ensuring strong, secure placement for your standing seam panels.

Uses:

• Ideal for securing standing seam panels in roofing and wall cladding
• Provides a neat, flush finish with minimal seam build-up
• Suitable for both new installations and repairs

Product Details:

• Material: Stainless Steel 1.4301
• 0.4 mm thickness (to keep the thickness to a minimal build‐up in the seam)

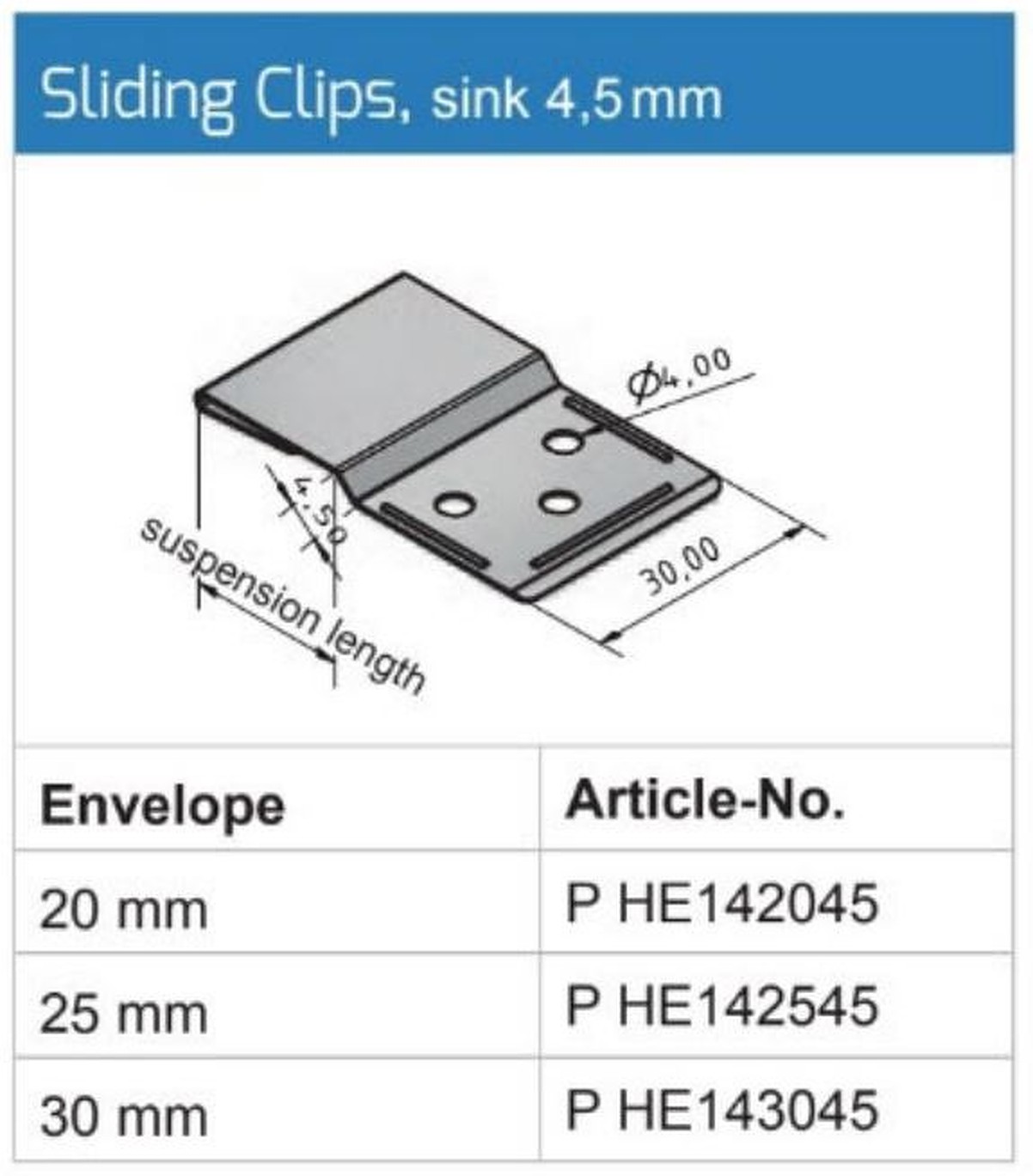

• 4.5 mm sink (offset) for a precise, flush fit
• Installation with Stainless Steel grooved nails (loading capacity class 3/C) 2.5 x 25 mm or Stainless Steel screws 4.0 x 25 mm (4.0 x 30 mm)

Variations:

• P HE1425 45-200: envelopes 25 mm – 200/box
• P HE1430 45: envelopes 30 mm – 500/box
