JEPSON ACCESSORIES FOR PDC 9430 AND SHDC 8320

$52.00$591.00

Accessories include: Saw blades, clamping systems, guide rail, connector for cutting guide and case.

SKU: JEPSON ACCESSORIES Category: Brand:

Description

JEPSON ACCESSORIES FOR PDC 9430 AND SHDC 8320

JEPSON 12″ Drytech Saw Blade

Uses:

  • For PDC 9430
  • For cutting: steel & stainless steel (thin-walled)

Product details:

  • Very high durability
  • Excellent cutting quality
  • Shortcutting times
  • Thin-walled
  • Noise is reduced thanks to laser slots filled with synthetic resin
  • The blade can be resharpened up to 5 times
  • Dry-cutting technology eliminates the need for lubricants, making it a more environmentally friendly option
  • Universally applicable on hand-held circular saws, mitre saws, and stationary machines.

Technical Details:

  • Dia: 12′ / 305 mm
  • Bore: 1′ / 25,4 mm
  • Kerf: 0,087′ / 2,2 mm
  • Teeth: 80
  • Max. speed 1800 rpm

Models (saw blades for PDC 9430):

  • SKU: 600540 – 80 Teeth
  • SKU: 600530 40 – 60 Teeth

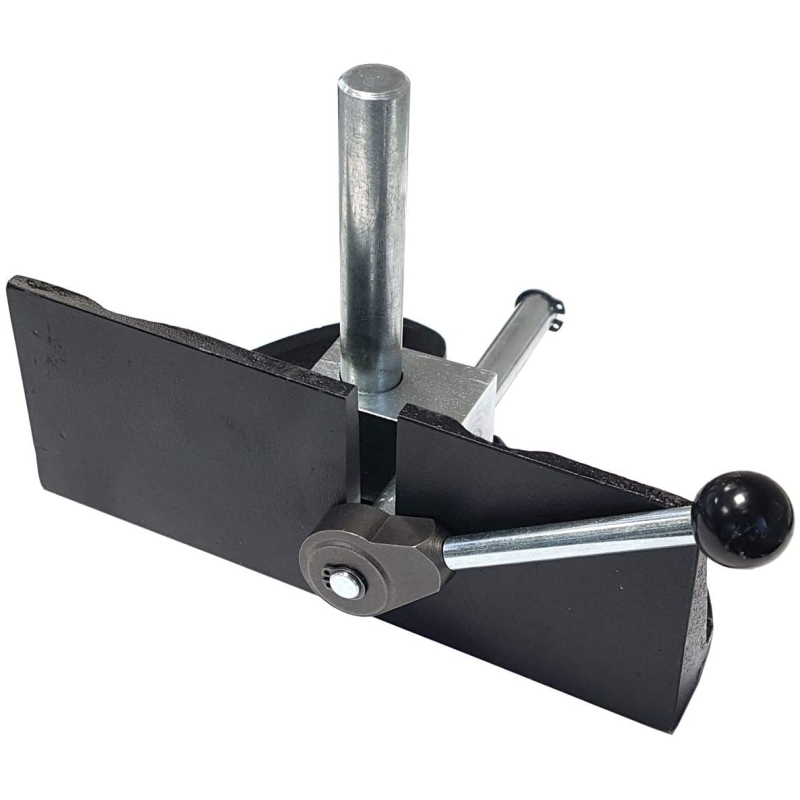

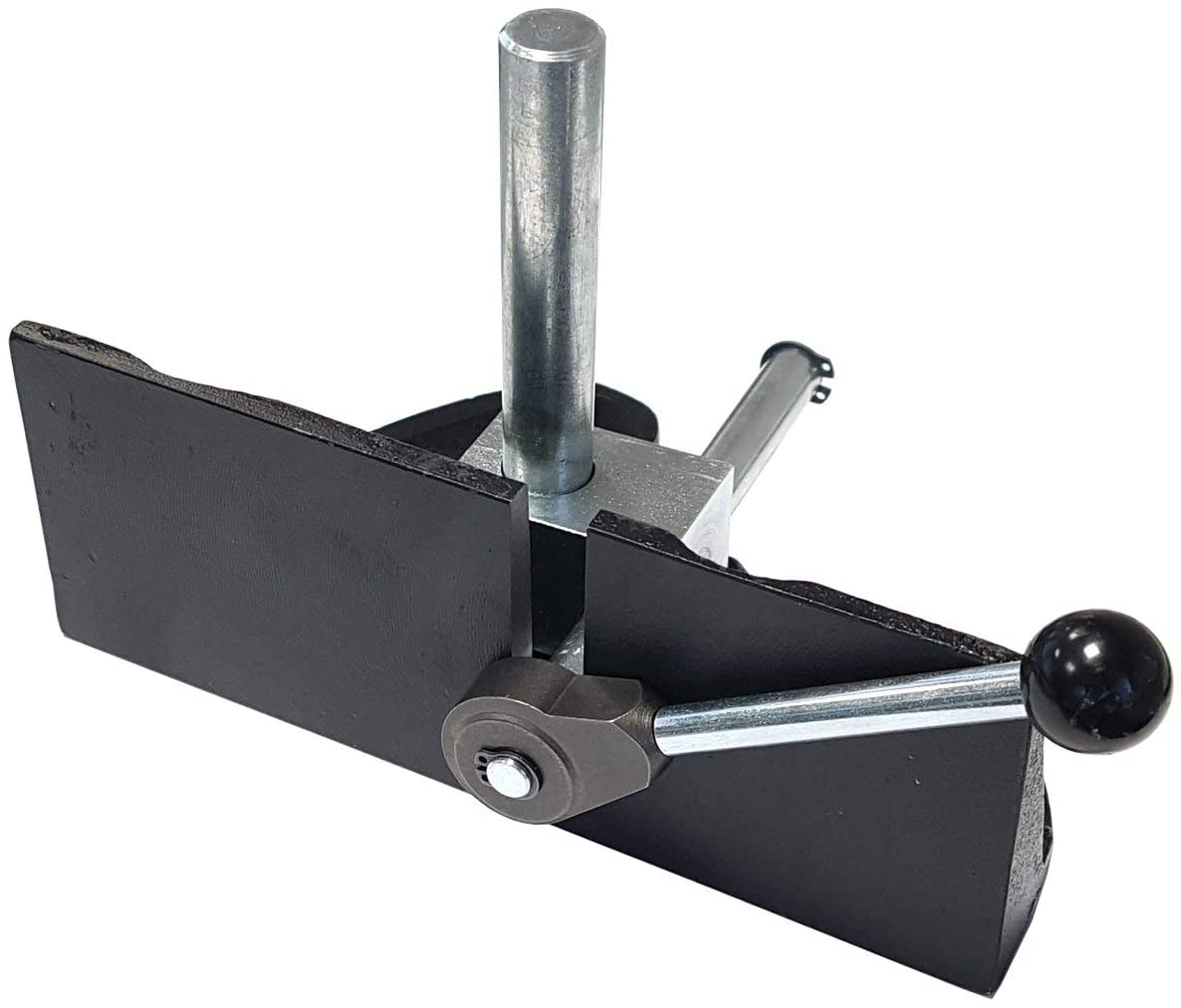

JEPSON Eccentric – Clamping System

Uses:

  • For PDC 9430
  • Simplifies the clamping of thin-walled profiles.
  • Since the clamping pressure is exerted by two separate systems, deformation of the workpiece is not possible.

Models:

  • SKU: 609910

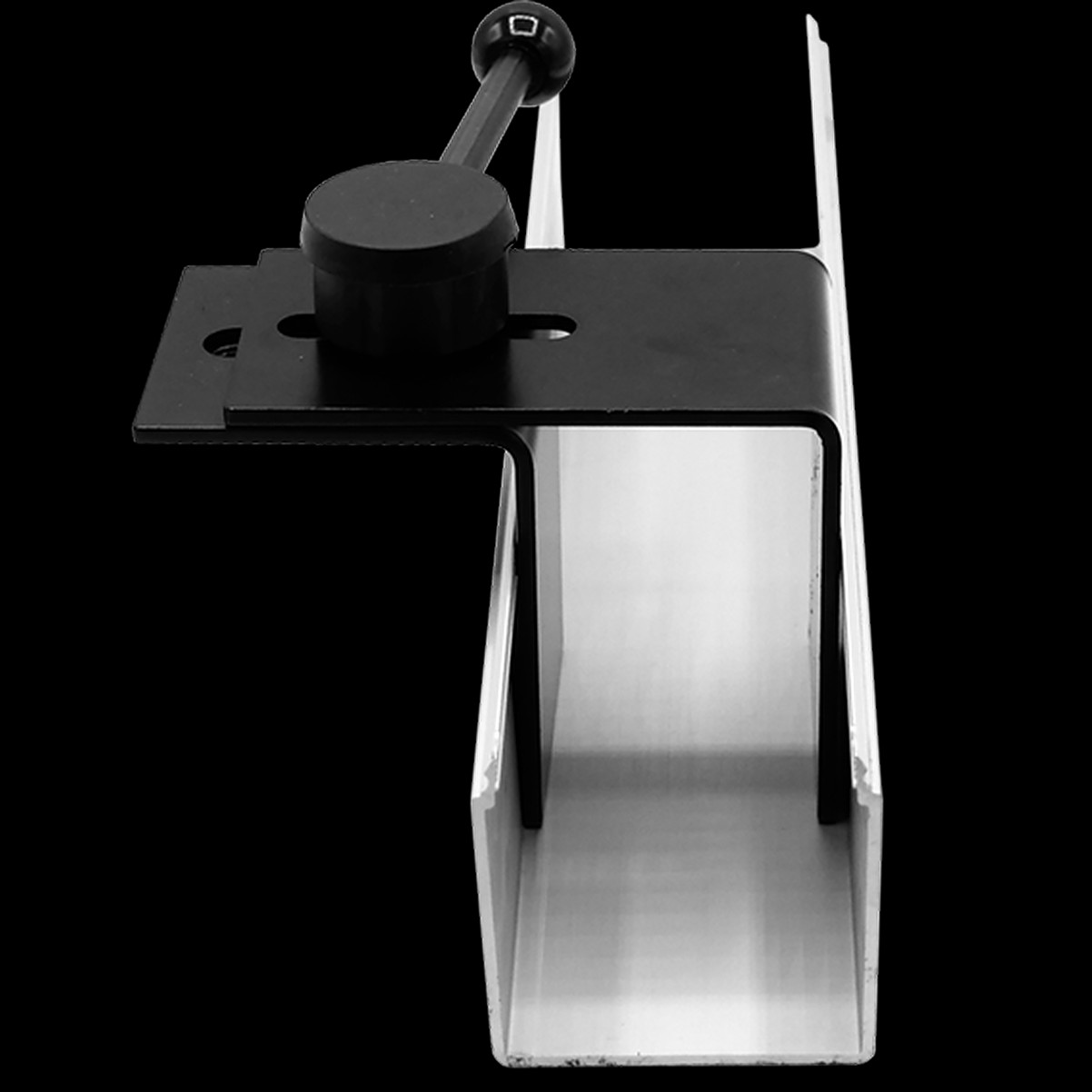

JEPSON Thinfix – Clamping System for Open Profiles

Uses:

  • for PDC 9430
  • Prevents the material from vibrating during clamping, resulting in an improvement in the cutting surface and an extension of the cutting life.

Models:

  • SKU: 600546

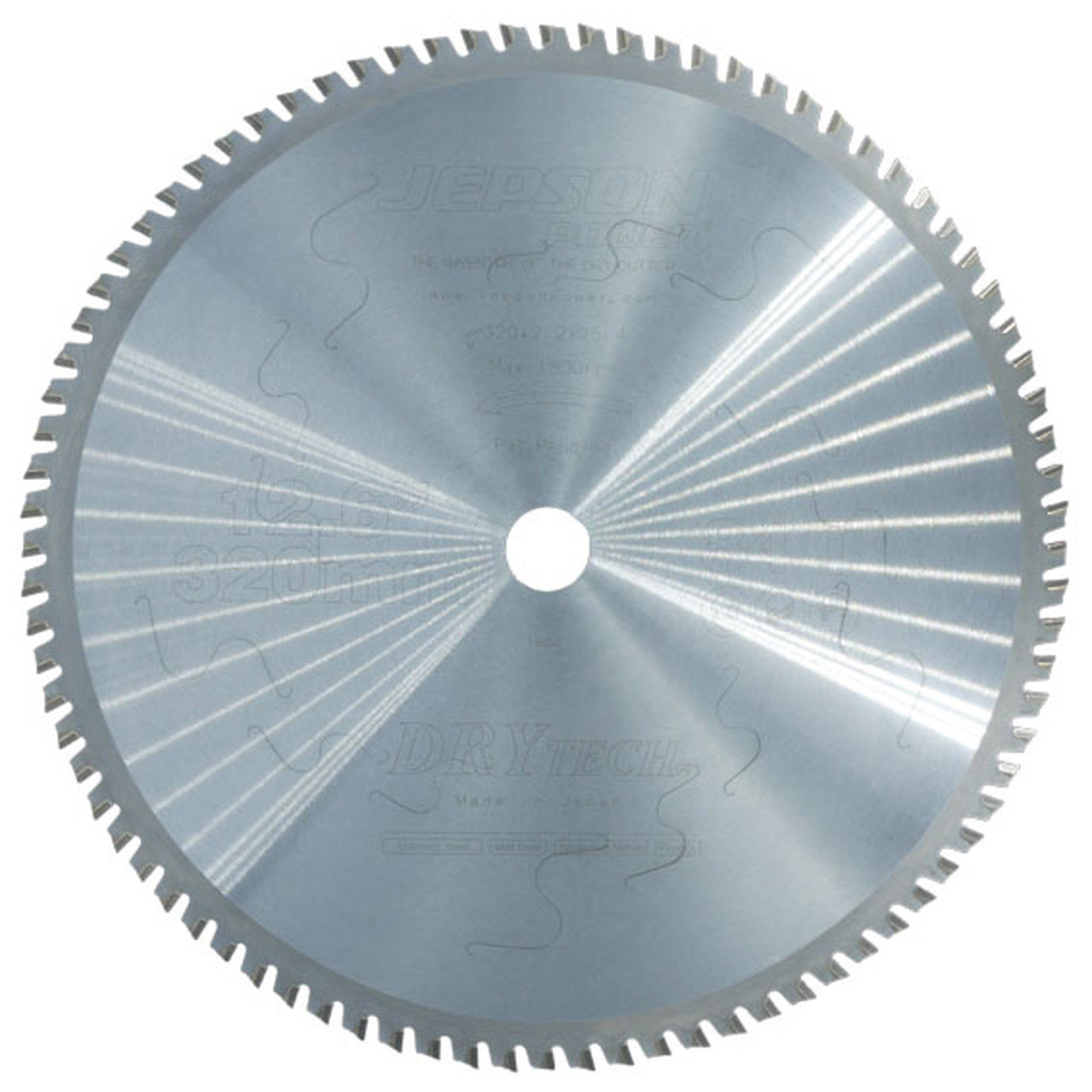

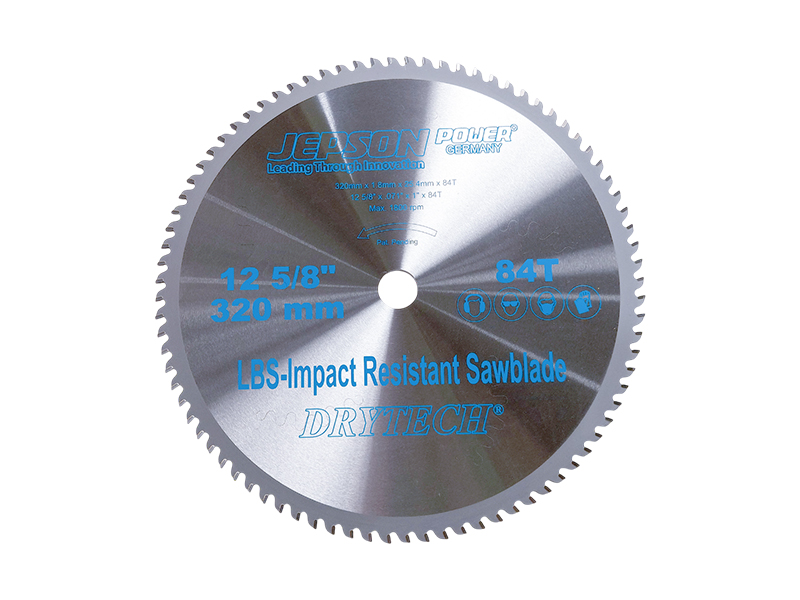

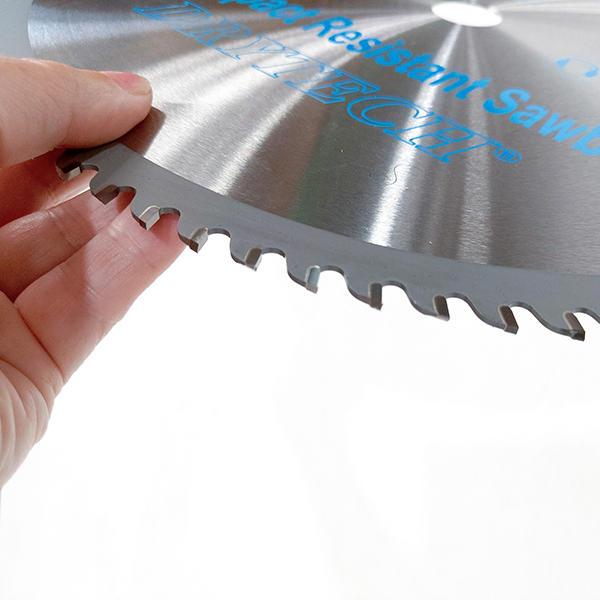

JEPSON 12 5/8″ Saw Blade 320/84T for Steel

Uses:

  • For SHDC 8320
  • Application: steel

Product details:

  • Very high durability
  • Excellent cutting quality
  • Shortcutting times
  • Thin-walled
  • Noise is reduced thanks to laser slots filled with synthetic resin
  • Blade be resharpened up to 5 times
  • Dry-cutting technology eliminates the need for lubricants, making it a more environmentally friendly option
  • Universally applicable on hand-held circular saws, mitre saws, and stationary machines.

Technical Details:

  • Dia: 12,6′ / 320 mm
  • Bore: 1′ / 25,4 mm
  • Kerf: 0,087′ / 2,2 mm
  • Teeth: 84
  • Max. speed 1800 rpm

Models:

  • SKU: 608276

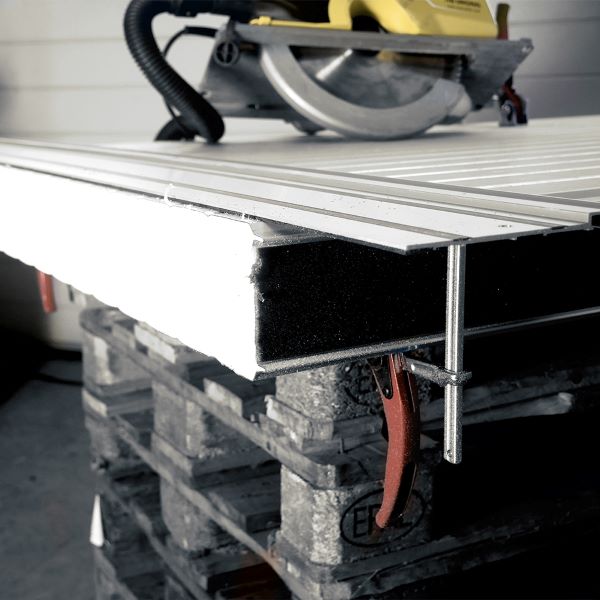

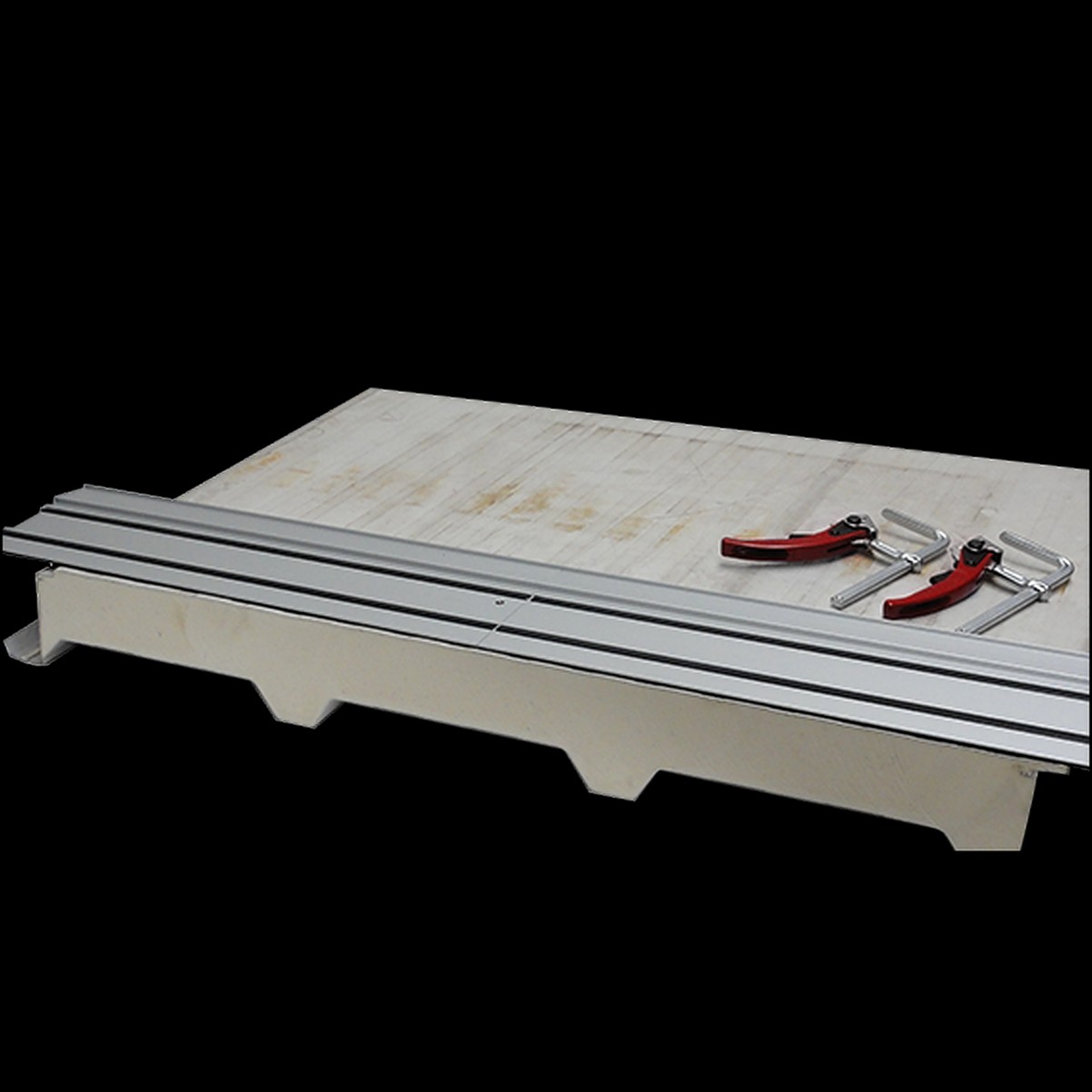

JEPSON Guide Rail 1400 mm incl. 2 C – Clamps

Uses:

  • For SHDC 8320
  • Ideal for clean and straight cutting of sandwich panels

Product details:

  • Guide rail 1,400mm with 2 C-clamps

Models:

  • SKU: 608275SET

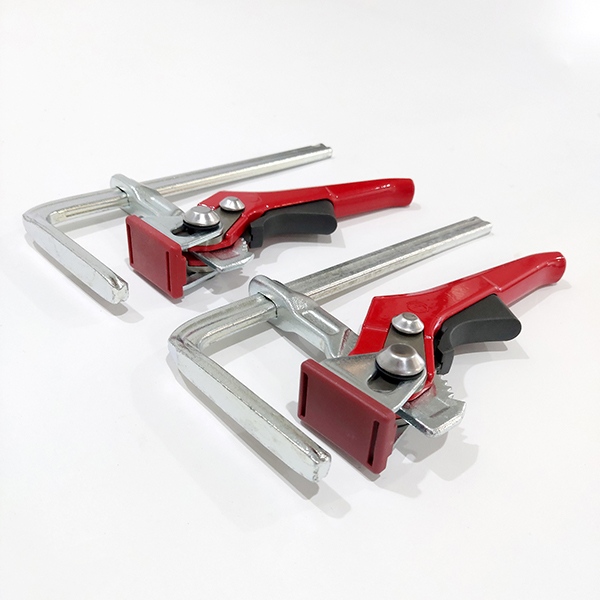

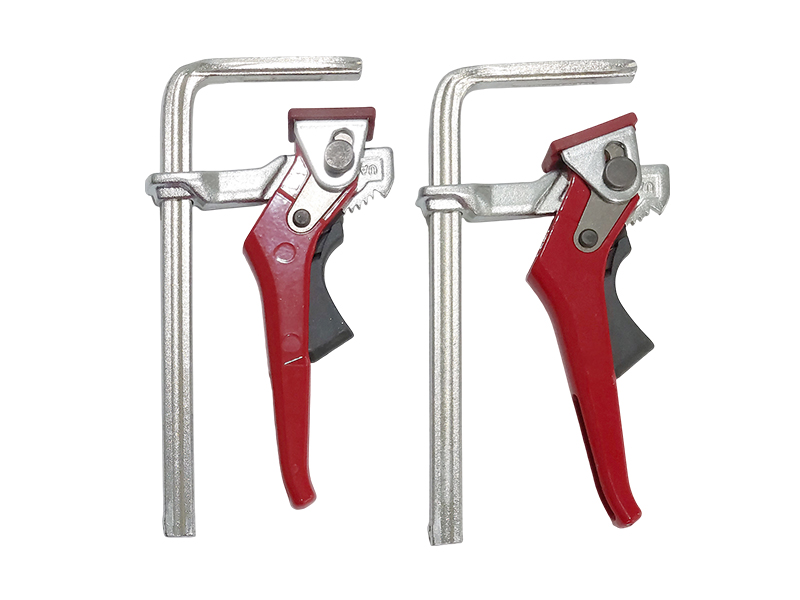

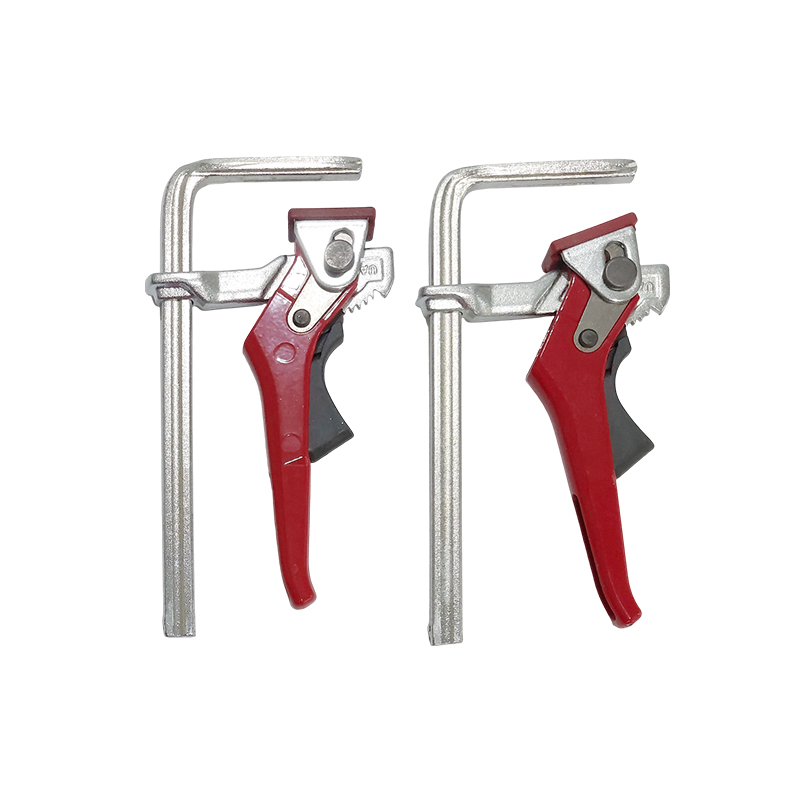

JEPSON X2 C-Clamps For Guide Rail

Uses:

  • For SHDC 8320
  • Accessory for guide rail

Models:

  • SKU: 608275S

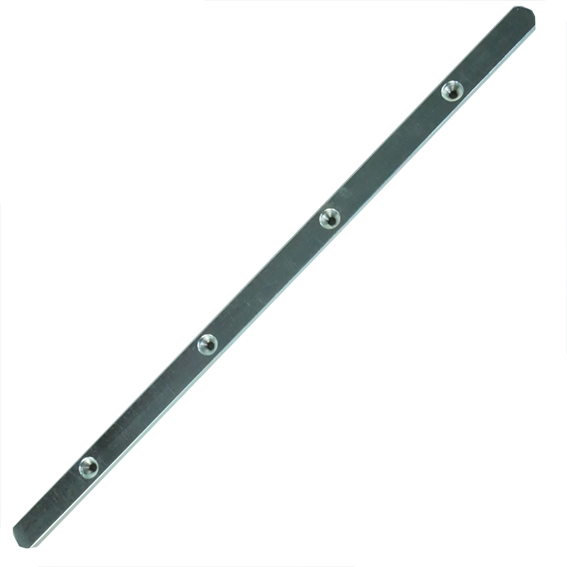

JEPSON Connector For Cutting Guide

Uses:

  • For SHDC 8320
  • Coupling piece for guide rail 1400 mm of SHDC 8320

Models:

  • SKU: 608275B

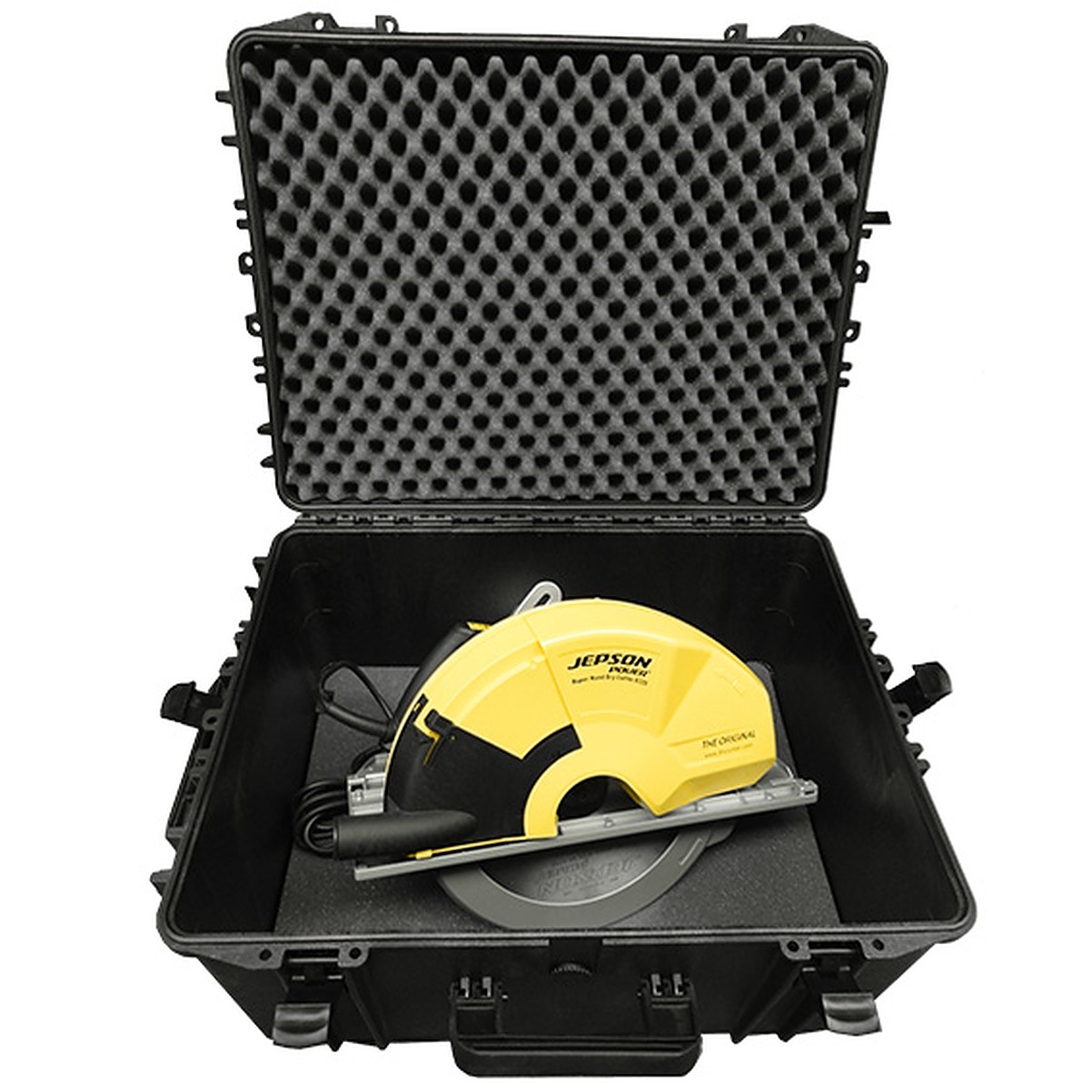

JEPSON Heavy Duty Professional Blow Case

Uses:

  • For SHDC 8320
  • Easier and more convenient transport of the machine for a clean and economical workplace.

Product Details:

  • Professional high-performance box for maximum protection during storage and transport.
  • Box only.

Models:

  • SKU: 60827BOX
