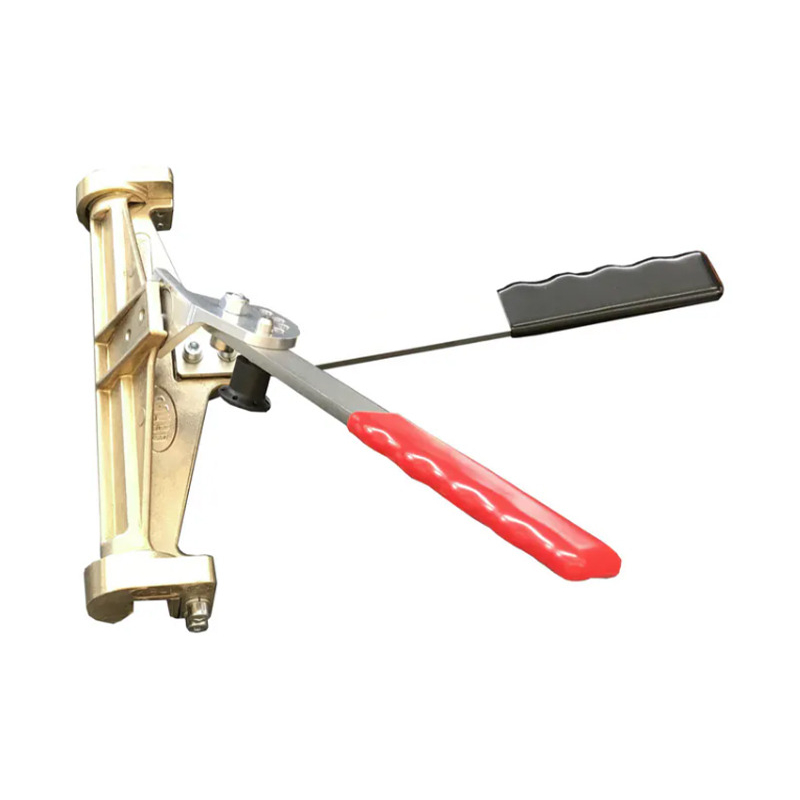

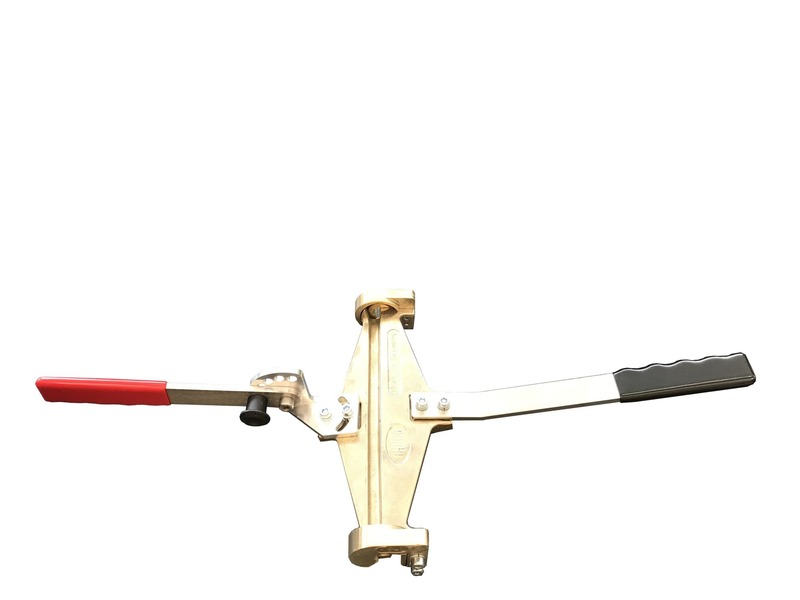

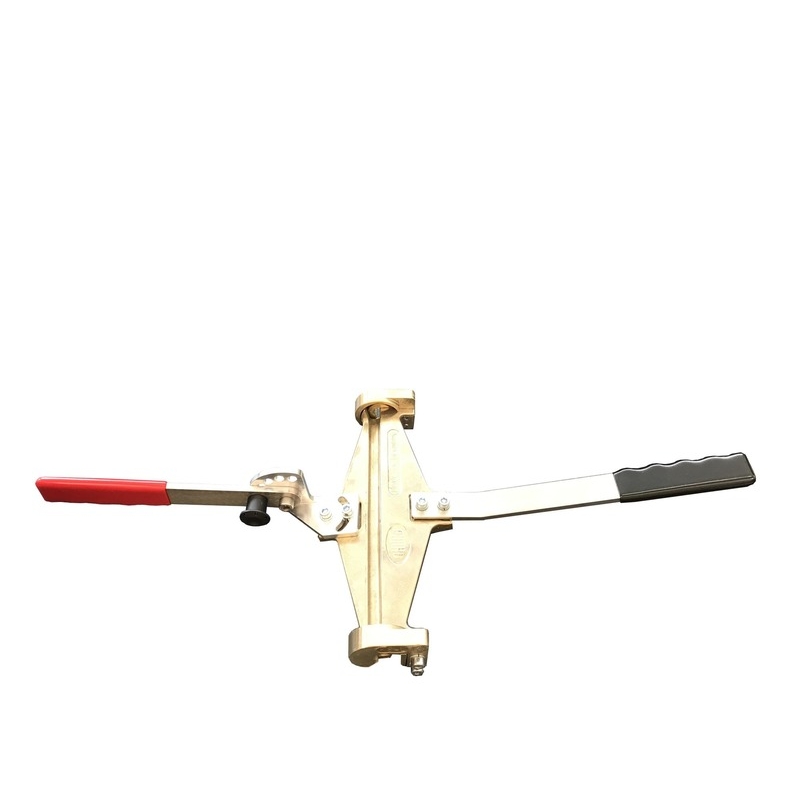

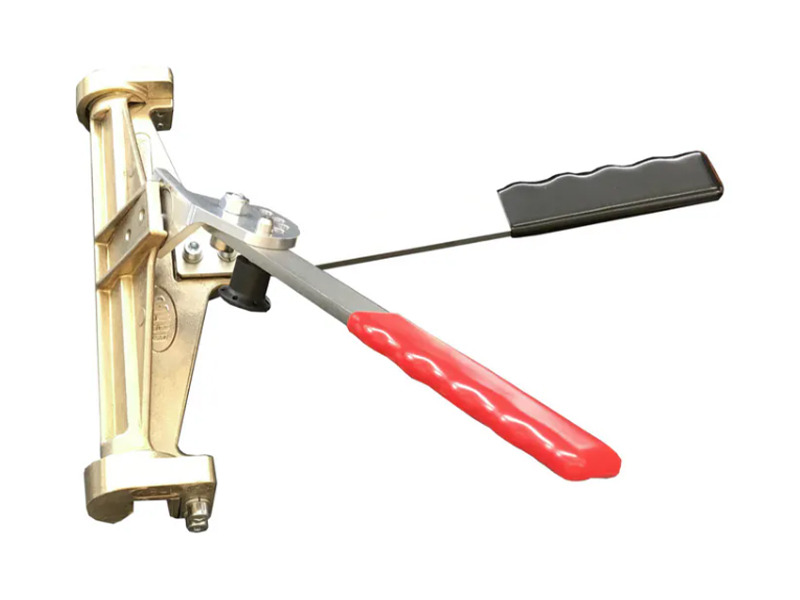

DRACO SINGLE LOCK HAND CLOSER K8S1 WITH SWIVELLING LEVER

Description

DRACO SINGLE LOCK HAND CLOSER K8S1 WITH SWIVELLING LEVER

The Single Lock Hand Seamer K8S1 with swivelling lever is ideal for closing single seams in a single pass in profiled material. It’s great for starting connections and areas with difficult access, so wherever one can not get in with the electric tilting machines and still want to work quickly. The K8S1 securely and firmly closes the profile in a sheet with or without coating.

Sheet iron, aluminium, copper and zinc can be threaded to a thickness of 0.8 mm. In stainless steel, the maximum thickness is 0.5 mm.

Application options:

The K8S1 is suitable for various applications such as short facades, chimney connections, front roofs, and bay windows. It can be used for securing initial connections, pre-closing on clips, and closing hard-to-reach areas on facades.
When placing very long lanes, the K8S1 can also be used for fastening and thus for temporary protection against gusts of wind.
If an electric seamer (eg the DRÄCO roofing machine K9-1) can not be used directly at the beginning of a seam due to obstacles, or if the seamer at the end of the seam can not run out of the material, the K8S1 closes before or after.

• Closing Length: 210mm
• Length: 255mm
• Width: 270-570mm
• Aluminium, copper, zinc, steel: 0.8mm
• Stainless Steel: 0.5mm
