DRACO MULTI BENDER 200 SET

Description

DRACO MULTI BENDER 200 SET

Universal Tool for beading, swaging, offsetting, bending, and trimming. On-site or in the workshop.

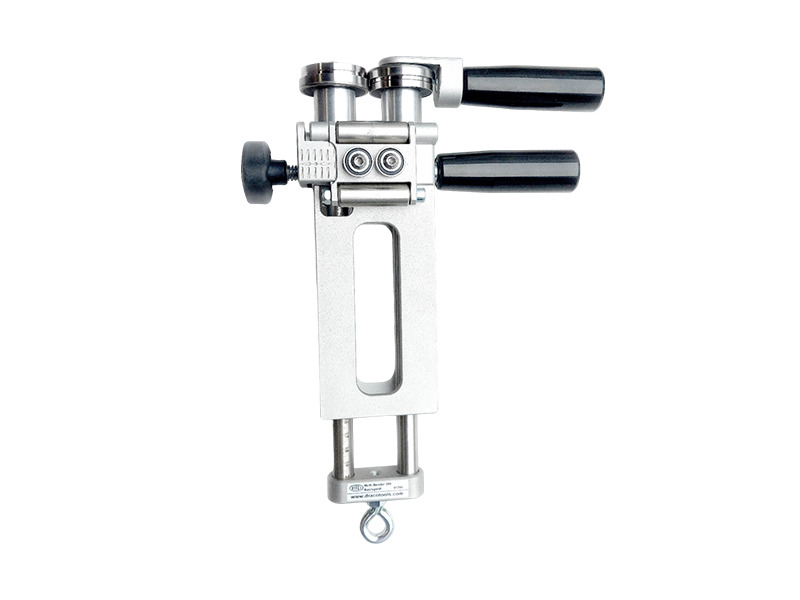

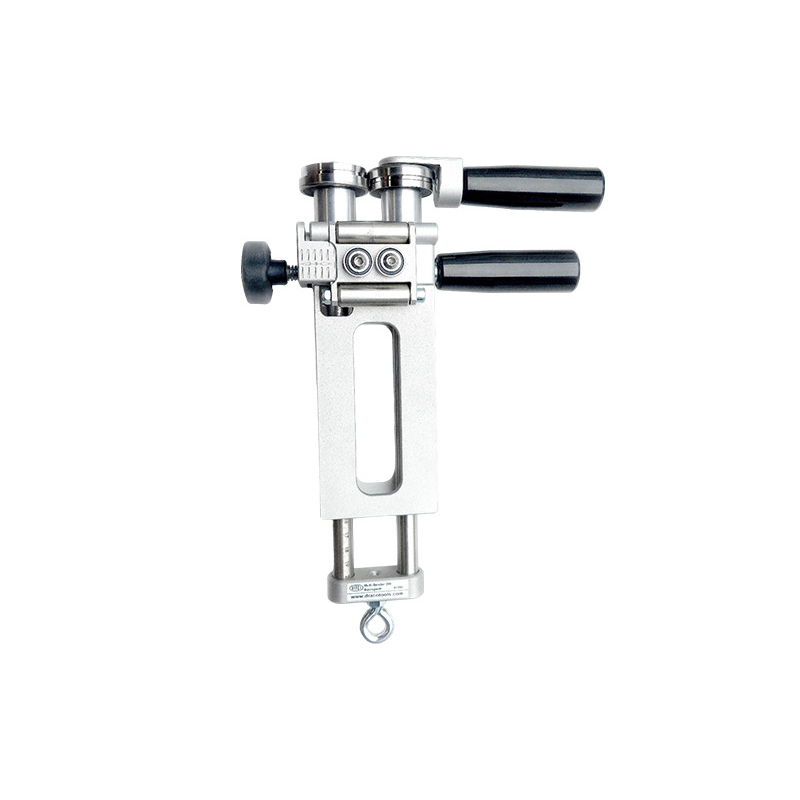

The Multi-Bender 200 is a lightweight, portable manual device. Ideal for swage rolling, recessing for flatlock panels, as well as trimming.

The manual adjustment of the upper roller, as well as the sideways folding wings, allow delicate machining of the workpieces and complex shapes.
The workpiece is held not only by a stop plate but also by vertically arranged hardened wheels and ball bearings, which ensure the repeatability of recurring workpieces.

• Free box for equipped tool
• Interchangeable forming rolls
• Beading or offset depth up to approx. 3,5 mm
• Open guide rollers laterally to work on straight lines and bends more comfortable
• Bend height: from 44 to 244 mm
• Capacity, ca: Aluminium, Copper, Zinc: 1,0 mm (18 ga.) Steel 0,8 mm (20 ga.) Stainless steel 0,5 mm (23 ga.)

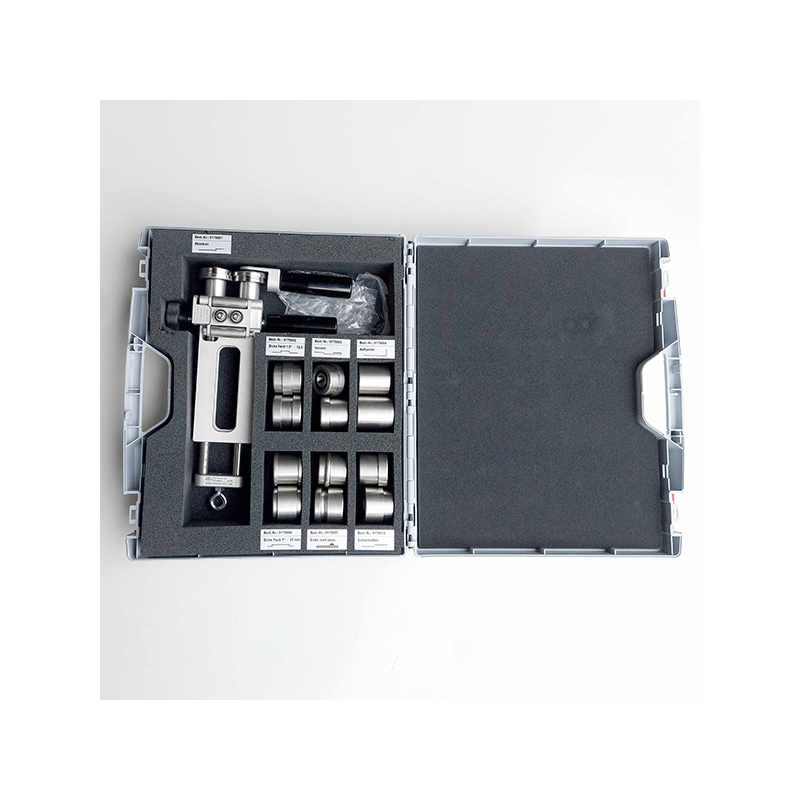

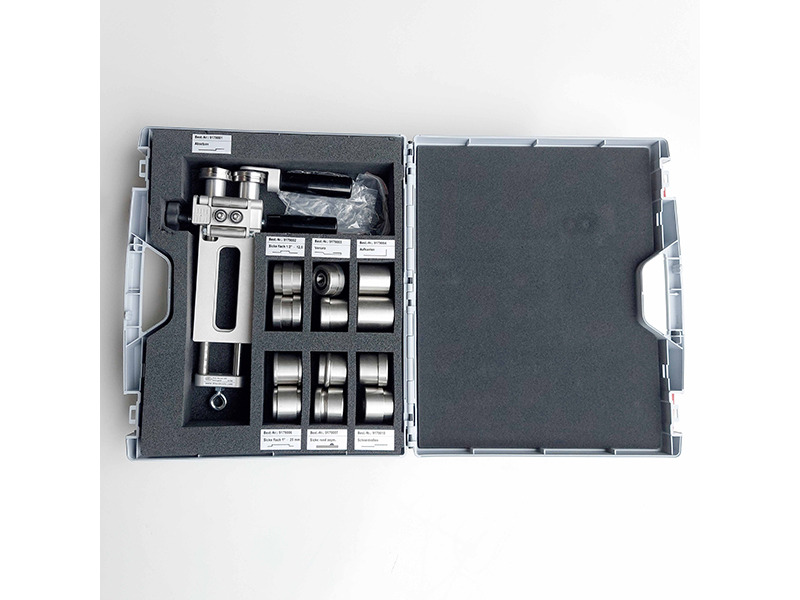

Set:

• 91780 Multi Bender 200
• 91785 Handle
• 91786 Guidance device
• 7 pairs of forming rollers (see below)

Pair of rolls:

1. 9179001 #1 AS, offsetting 1
2. 9179002 #2 SF12, flat beading ½” (12.5 mm)
3. 9179003 #3 VS, offsetting 2
4. 9179004 #4 AB, bending
5. 9179006 #6 SF25, flat beading, 1″ (25 mm)
6. 9179007 #7 SRA, beading circularly, asymmetric
7. 9179010 #10 SR, cutting rollers
