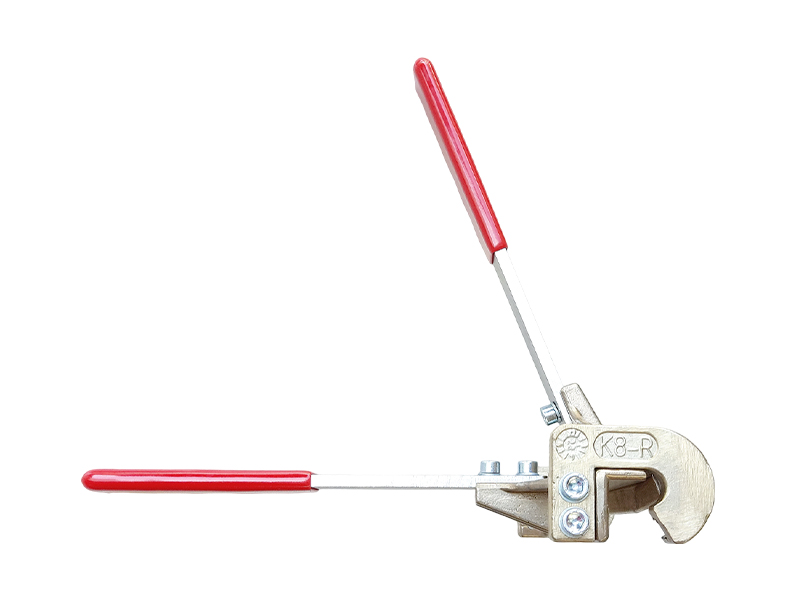

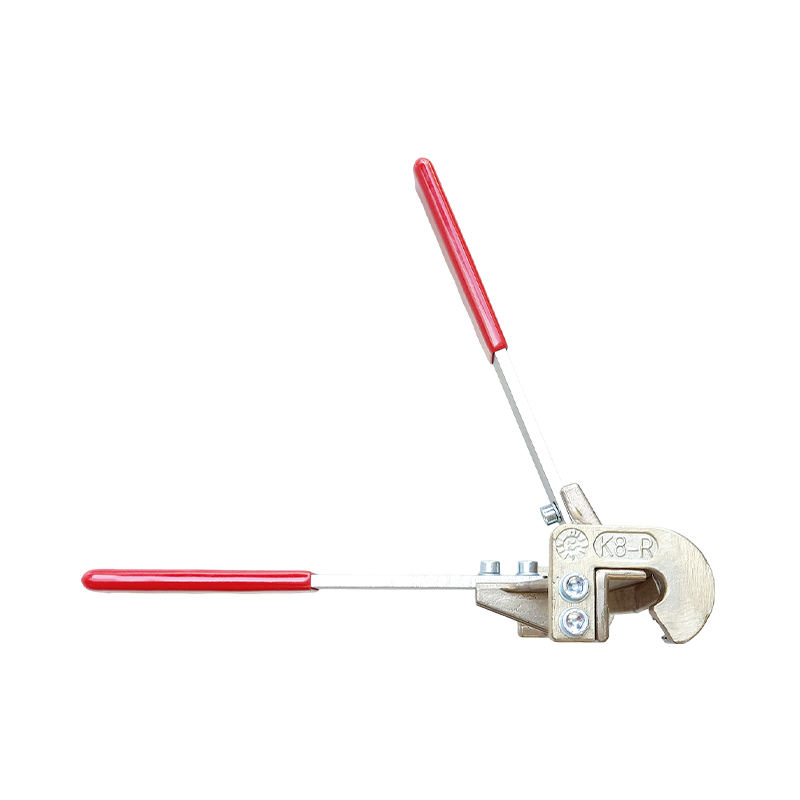

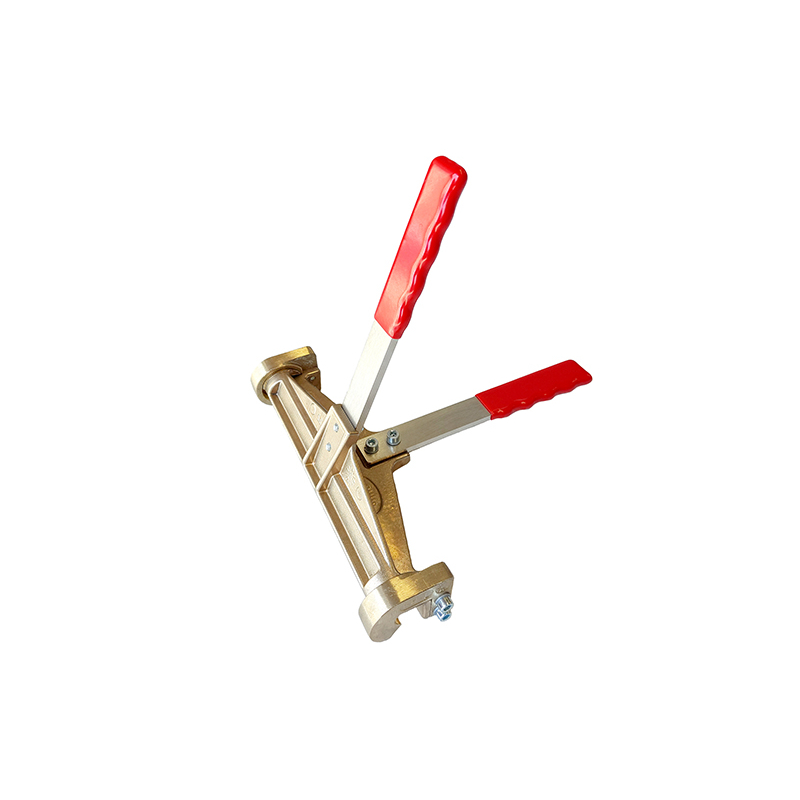

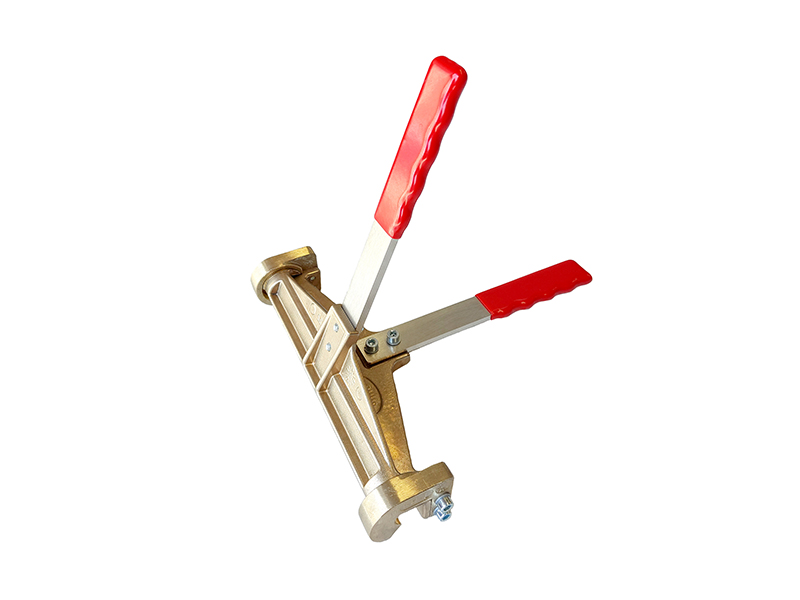

DRACO K8 SINGLE LOCK SEAMER

Description

DRACO K8 SINGLE LOCK SEAMER

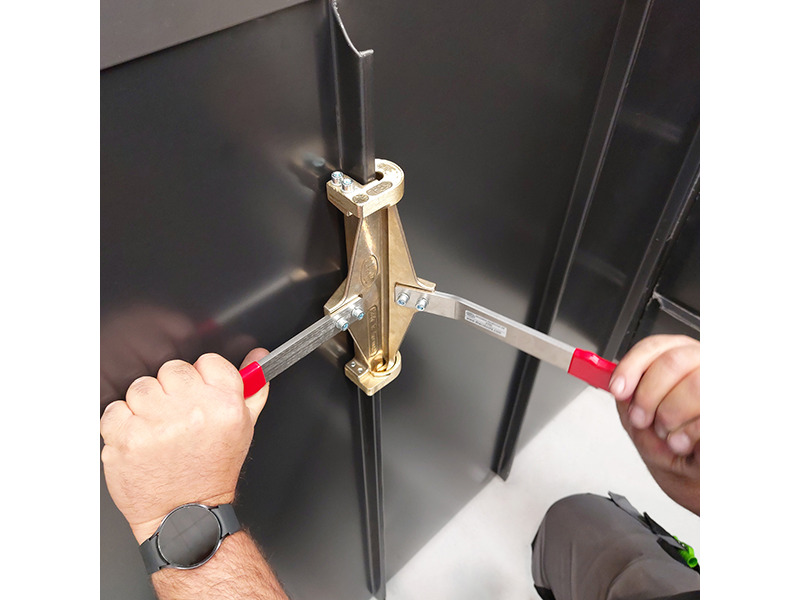

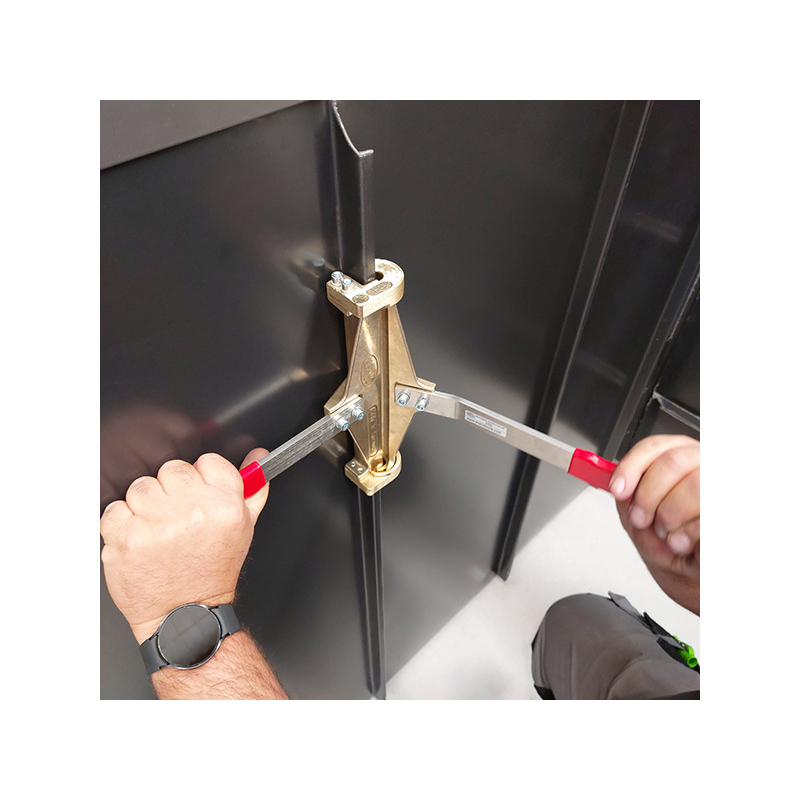

The Single Lock Hand Seamer K8 is designed for closing single seams in one pass in profiled materials. It is particularly useful for establishing connections and working in hard-to-reach areas where electric tilting machines cannot access. The K8 effectively closes the profile to form a strong and secure single seam in both coated and uncoated sheets. It’s ideal for roofing, wall cladding, and other sheet metal applications.

Uses:

• Close single seams in one pass on profiled materials
• Secure initial connections, pre-close on clips, and close areas that are hard to reach
• Work on short facades, chimney connections, front roofs, and bay windows
• Provide temporary protection against wind when placing long seams
• Close seams where electric seamers can’t be used at the beginning or end of a seam due to obstacles

Specifications:

• Closing Length: 210 mm
• Length: 255 mm
• Width: 270-570 mm (adjustable)
• Maximum Material Thickness:
  • Aluminium, copper, zinc, steel: up to 0.8 mm
  • Stainless Steel: up to 0.5 mm
